Wood Crusher

Home > Products > Wood Crusher > Hammer Mill

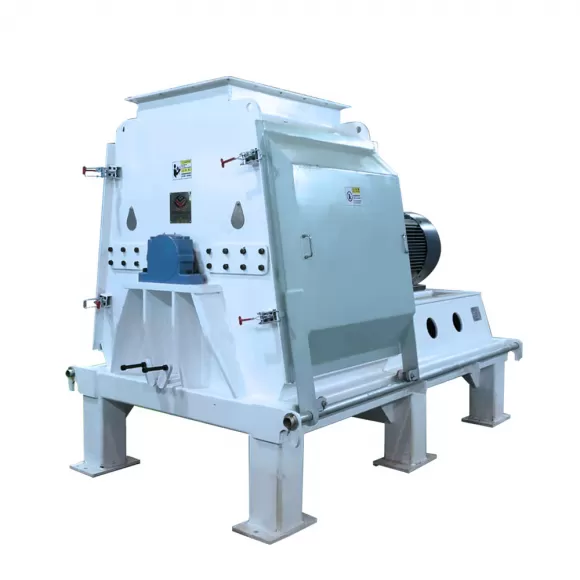

Hammer Mill

Advantage

High efficiency hammer mill working principle is that the raw material go into the grinding room, then will be grinding by the impact force and shear force caused by high speed rotating rotor and collision force caused by the high speed rotating rotor, then pass through the screen to get the eligible products.

Raw material

Bamboo

Bamboo

Chips

Chips

Nutshell

Nutshell

Rice husk

Rice husk

Straw

Straw

Parameter

ModelPower(kw)Capacity(t/h)Equipment Dimension(mm)Number Of Hammers
YGFS65X5537-451-22300*1165*210072
YGFS65X7555-752-32755*1165*2100108
YGFS65X10090-1103-43100*1165*2100144
YGFS120X1001605-85710*3410*3200216

Key points

1. The motor connect rotor directly, the rotating speed can be 3000r/min, lower power loss and higher efficiency.

2. Discharge from both sides, increased the discharge area and improved capacity.

3. The machine body adopts unique structural design, discharge smoothly with seamless.

4. The particle of screen can be adjusted, ensure finished products requirement.

5. Work with Cyclone and Bag Dust Collector, more better dedusting efficiency.

Accessories is introduced

Straw

Harbin bearing

Straw

Siemens motor

Straw

Wood hammer mill screen

Straw

Wood hammer mill blade

Straw

Wood hammer mill rotor

Export case

Malaysia 2113 Model 20-25t/h Wood Logs Wood Chipper

Malaysia 2113 Model 20-25t/h Wood Logs Wood Chipper

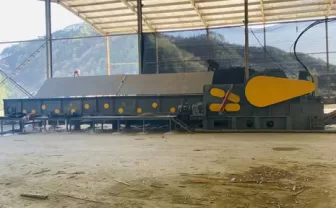

Philippines 2113 Model 20-25t/h Wood Chipper

Philippines 2113 Model 20-25t/h Wood Chipper

Vietnam Mobile Diesel Wood Chipper

Vietnam Mobile Diesel Wood Chipper

Japan 218 Model Wood Logs Wood Chipper

Japan 218 Model Wood Logs Wood Chipper

Certification

Our company has gained ISO9001-2000 Certification, CE Certification, SGS Certification patent etc. Products cover the environmental carbon, biomass, urban and rural environment, culture and other fields. There are five main series: the biomass compression molding equipment, garbage disposal equipment for urban and rural, organic fertilizer equipment, Feeder Equipment and Environmental protection equipment.

Service/policy/warranty or after-sales service

Service policy

Production service/Operation service

If you are short of technical engineers, lack of equipment maintenance experience, or your pellet plant has no profit. We provide technical engineers and full service to help you increase the profit of your pellet plant. We only charge the service fee of each ton pellets production, making you easy to be boss. (The production and operation capacity is at least 5t/h).


Overseas warehouse construction
Malaysia and more overseas warehouse are in construction, solving your after-sales service problems nearly .


Free Raw Material Test
We can do free raw material test for you. You just need to send your raw material to us, and we will find the best way to make pellets with it.
24-Hour online customer service guide by phone or any contact at any time.
48-Hour engineer's door-to-door service Save customers waiting time in maximum to raise their satisfaction

FAQ

FAQ

1. How do I pay to you?

(1) 30% deposit of the total amount to be paid by T / T in 5 working days after signing the sales contract, the balance of 70% will be paid before the goods leave the factory.
(2) 30% deposit of the total amount to be paid by T / T 5 working days after signing the sales contract, the balance of 70% can be paid by L / C before the factory leave goods.
(3) We can negotiate specific payment terms with our client.

2. How long is the delivery time?

For standard machines, that would be 25-30 working days; For non-standard machines and customized machines according to customers' specific requirements, it would be about 30 working days. we work with the biggest freight forwarder in North China. if you need to appoint other freight measures, we can arrange them because we have rich experience and sufficient funds to handle.

3. How about the documents after shipment?

After shipment, we wi ll send all original documents to you by DHL, including Bill of Lading, Commercial Invoice, B / L, and other certificates as required by customers.
