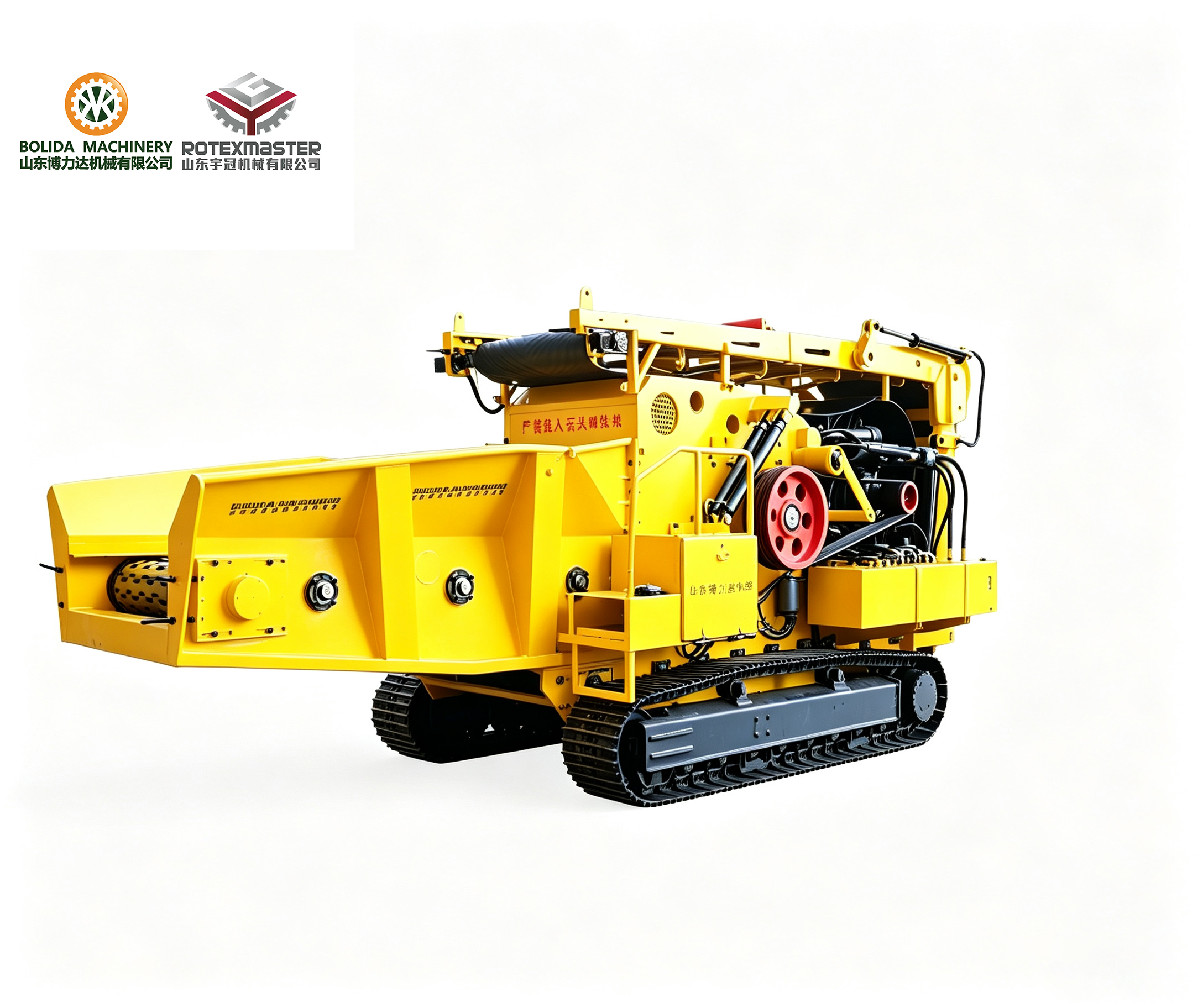

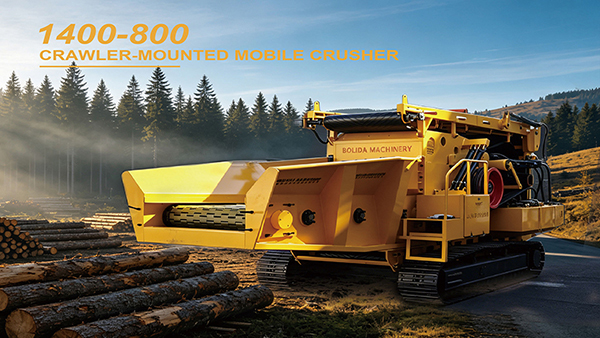

Working Principle: Powered by diesel engine, equipped with full-hydraulic control system. Triple-pump setup connects different hydraulic motors to realize crawler travel, feeding, material-pushing and discharging functions. The discharging system adopts a three-section folding design. The main boom can extend up to 127°, the jib can extend up to 90°. The front discharge end comes with a built-in mesh screen structure.
Video show
|
1.Excellent site adaptability. It can directly travel on muddy ground, pits, gravel yards, mountain areas and construction waste sites. No hardened pavement is required. It can run on dirt roads and muddy wetlands. 2.Flexible site transfer. It supports small-radius turning, and can make turns in narrow stock yards, tunnels and workshop corners.
Feeding Chain Plate
8 mm-thick chain plate, integrally stamped. Eliminates gaps caused by intermediate rollers to prevent cracking.
Feeding Roller
Built-in bearing design. The feeding roller is fully embedded between two side boxes to avoid material leakage on both sides.
Diesel Engine
1.Manual / automatic ignition startup, with built-in booster oil pump.
2.Clutch startup shock-absorbing system, to prevent belt pulley from pulling and damaging the clutch.
Key points
| Item | Specification |
| 1. Feeding System | Chain plate feeding |
| Feeding trough width | 1400 mm |
| Feeding trough length | 3500 mm |
| Feeding hydraulic reducer & motor | 1400 |
| Feeding speed | 0–33 m/min |
| 2. Main Body Equipment | Integrated Wood Chipper |
| Overall dimension of main machine | 7800mm2750mm3300mm |
| Steel plate thickness of main machine | 25 mm |
| Main machine plate material | Q345 |
| Cutter roll diameter | 800 mm |
| Cutter roll main shaft | 40Cr quenched and tempered |
| Cutter roll rotating speed | 560 rpm |
| Production capacity | 20–25 t/h |
| Feed inlet | 1400*800 mm |
| Blade quantity | 3 knives, 6 pieces |
| Diesel engine model | 480 HP |
| 3. Discharge System Equipment | Foldable Belt Conveyor |
| Discharge belt width | 1200 mm |
| Head discharging height | 4500 mm |
| Track | Brand new crawler track |
| 4. Hydraulic System | |
| Hydraulic oil tank volume | 400 L |
| Power unit | 24V |
Certification
Our company has gained ISO9001-2000 Certification, CE Certification, SGS Certification patent etc. Products cover the environmental carbon, biomass, urban and rural environment, culture and other fields. There are five main series: the biomass compression molding equipment, garbage disposal equipment for urban and rural, organic fertilizer equipment, Feeder Equipment and Environmental protection equipment.
Service/policy/warranty or after-sales service
Production service/Operation service
If you are short of technical engineers, lack of equipment maintenance experience, or your pellet plant has no profit. We provide technical engineers and full service to help you increase the profit of your pellet plant. We only charge the service fee of each ton pellets production, making you easy to be boss. (The production and operation capacity is at least 5t/h).
Overseas warehouse construction
Malaysia and more overseas warehouse are in construction, solving your after-sales service problems nearly .
Free Raw Material Test
We can do free raw material test for you. You just need to send your raw material to us, and we will find the best way to make pellets with it.
24-Hour online customer service guide by phone or any contact at any time.
48-Hour engineer's door-to-door service Save customers waiting time in maximum to raise their satisfaction
