Advantage

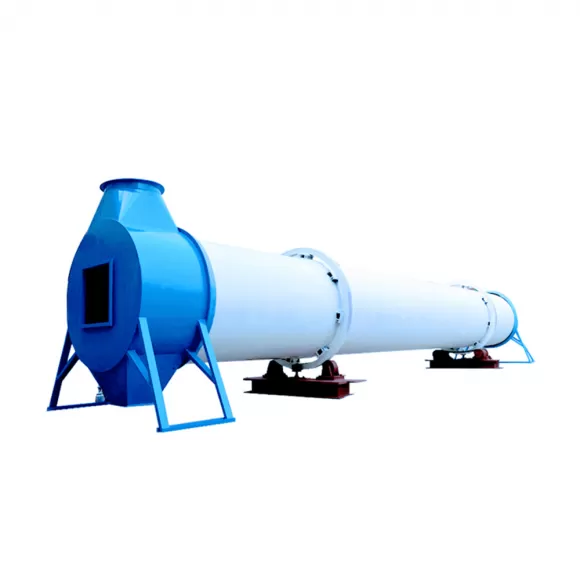

The rotary dryer is mainly composed of a cylinder body, a roller ring, a base retaining roller and a tail dust removing device. The hot air and the material are contacted in the cylinder body, and the material is designed to make the material and the hot air fully contact to achieve the drying effect.
Suitable for drying raw materials such as straw, forage, leaves, fish meal, corn sauce, starch residue, distiller's grains, medicinal residue, fruit residue, soy sauce residue, sugarcane residue, peat, organic compound fertilizer, sludge, aquatic product waste, food factory waste, slaughterhouse waste, organic fertilizer material, inorganic fertilizer, etc. in the agricultural, feed, and fertilizer industries.
Raw material
Chipper
Sawdust
Shaving
Straw
Wood pellet
Parameter
| Model | Power(kw） | Evaporation（t/h） | Gradient | Thickness(mm) |
| YGHG1.2*12 | 5.5+15+2.2+1.5 | 0.3-0.6 | 2-3° | 10mm |
| YGHG1.5*12 | 11+18.5+3+2.2 | 0.47-0.91 | 2-3° | 12mm |
| YGHG1.8*18 | 18.5+37+3+2.2 | 1.01-1.90 | 2-3° | 12mm |
| YGHG2.0*18 | 18.5+55+5.5+2.2 | 1.25-2.3 | 2-3° | 14mm |
| YGHG2.2*24 | 22+90+5.5+2.2 | 2.02-3.36 | 2-3° | 14mm |
| YGHG2.5*24 | 22+90+5.5+3 | 2.61-4.16 | 2-3° | 14mm |
| YGHG3.0*24 | 30+132+5.5+3 | 3.76-5.6 | 2-3° | 16mm |
Key points
1. The design of the lifting plate in the cylinder is Multi-angle,so that the material forms a curtain in the cylinder.
2. The material and hot air contact surface is high, the thermal efficiency is high, and the drying effect is good.
3. The structure design is reasonable, which is conducive to maintenance
4. The material has a wide range of applications, can be used for the drying of powder, wood chips, silk materials, etc.
Export case
Inner Mongolia Wood Sawdust Rotary Dryer
Malaysia Wood Sawdust Rotary Dryer
Turkey Wood Chips Rotary Dryer
Thailand Wood Sawdust Rotary Dryer
Exhibition pictures
Japan Exhibition
Indonesia Exhibition
Russia Exhibition
Russia Exhibition
Certification
Our company has gained ISO9001-2000 Certification, CE Certification, SGS Certification patent etc. Products cover the environmental carbon, biomass, urban and rural environment, culture and other fields. There are five main series: the biomass compression molding equipment, garbage disposal equipment for urban and rural, organic fertilizer equipment, Feeder Equipment and Environmental protection equipment.
Service/policy/warranty or after-sales service
Production service/Operation service
If you are short of technical engineers, lack of equipment maintenance experience, or your pellet plant has no profit. We provide technical engineers and full service to help you increase the profit of your pellet plant. We only charge the service fee of each ton pellets production, making you easy to be boss. (The production and operation capacity is at least 5t/h).
Overseas warehouse construction
Malaysia and more overseas warehouse are in construction, solving your after-sales service problems nearly .
Free Raw Material Test
We can do free raw material test for you. You just need to send your raw material to us, and we will find the best way to make pellets with it.
24-Hour online customer service guide by phone or any contact at any time.
48-Hour engineer's door-to-door service Save customers waiting time in maximum to raise their satisfaction
FAQ
1. How do I pay to you?
(1) 30% deposit of the total amount to be paid by T / T in 5 working days after signing the sales contract, the balance of 70% will be paid before the goods leave the factory.
(2) 30% deposit of the total amount to be paid by T / T 5 working days after signing the sales contract, the balance of 70% can be paid by L / C before the factory leave goods.
(3) We can negotiate specific payment terms with our client.
2. How long is the delivery time?
For standard machines, that would be 25-30 working days; For non-standard machines and customized machines according to customers' specific requirements, it would be about 30 working days. we work with the biggest freight forwarder in North China. if you need to appoint other freight measures, we can arrange them because we have rich experience and sufficient funds to handle.
3. How about the documents after shipment?
After shipment, we wi ll send all original documents to you by DHL, including Bill of Lading, Commercial Invoice, B / L, and other certificates as required by customers.
